Spring Making Machines
CNC spring making machines, from multi-slide multi-point forming systems to CNC compression spring coiling machines.
- Multi-Slide Spring Forming Machines
- CNC Compression Spring Machines
Choose the Spring Making Technology Route
01

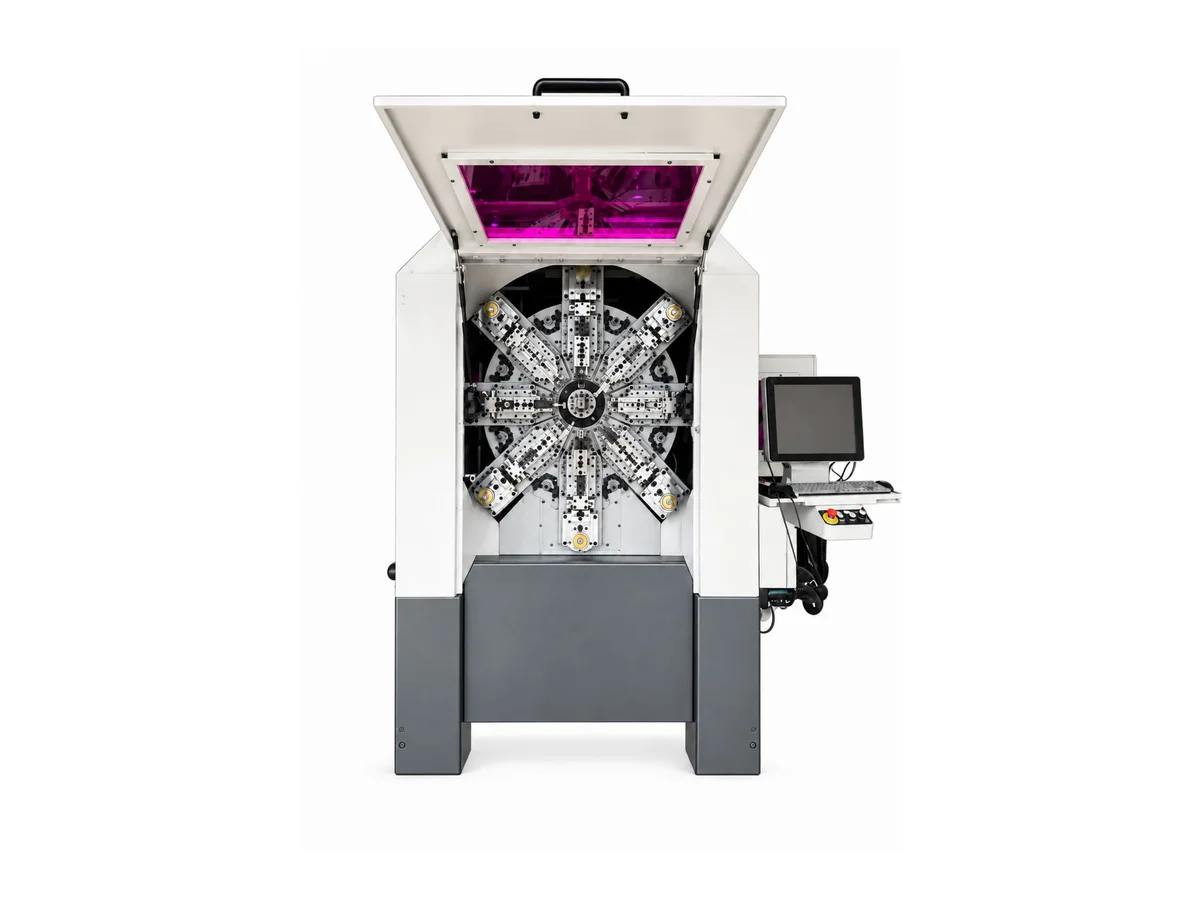

Multi-Slide Spring Forming Machines
- Wire range
- Ø1.5–6 mm
- Axes
- 10–14 (multi-point forming)
- Models
- 2
02
CNC Compression Spring Machines
- Wire range
- Ø0.15–6 mm
- Axes
- 2–7
- Max outer diameter
- Ø22–90 mm
Final machine selection is confirmed after reviewing the part drawing and production requirements.
Multi-Slide Spring Forming Machines
Two Multi-Slide Spring Forming Machine models cover a Ø1.5–6 mm wire range, using multi-point forming across 10 to 14 axes.
Quick Compare — Multi-Slide Spring Forming Machines
| Model | Wire Range | Axes |
|---|---|---|
| HM-MS1145 | Ø1.5–4.5 mm | 10/11/12/14 |
| HM-MS1260 | Ø2–6 mm | 12/13/14 |
CNC Compression Spring Machines
Six CNC Compression Spring Machine models cover a Ø0.15–6 mm wire range across 2 to 7 axes, with maximum outer diameters from Ø22 mm to Ø90 mm.
Quick Compare — CNC Compression Spring Machines
| Model | Wire Range | Axes | Max Outer Diameter |
|---|---|---|---|
| HM-S208 | Ø0.15–0.8 mm | 2 | Ø22 mm |
| HM-S508 | Ø0.15–0.8 mm | 5 | Ø30 mm |
| HM-S708 | Ø0.15–0.8 mm | 7 | Ø30 mm |
| HM-S212 | Ø0.3–1.2 mm | 5 | Ø22 mm |
| HM-S540 | Ø1.2–4 mm | 5 | Ø65 mm |
| HM-S560 | Ø2–6 mm | 5 | Ø90 mm |
Send us your part drawing and production requirements — our engineers will review the application and help confirm the right machine configuration.
Frequently Asked Questions
Ready to discuss your spring making application?
Our engineers will review your drawing and respond with feasibility and machine recommendations.
